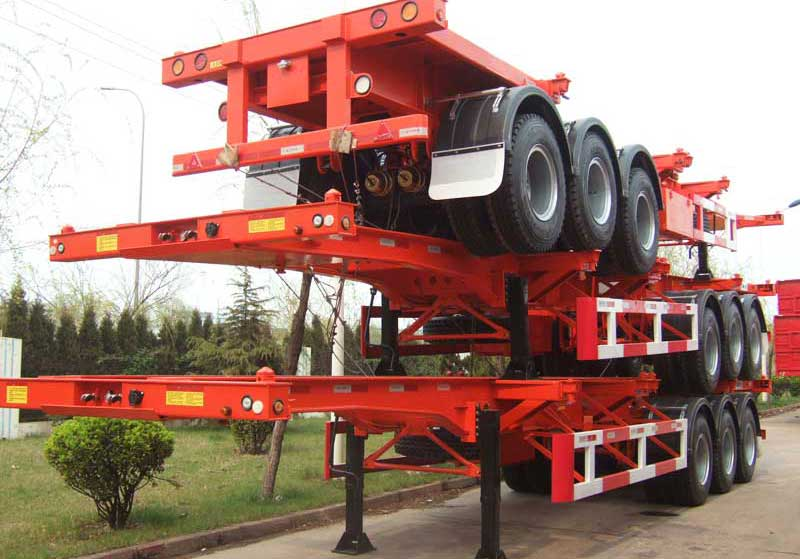

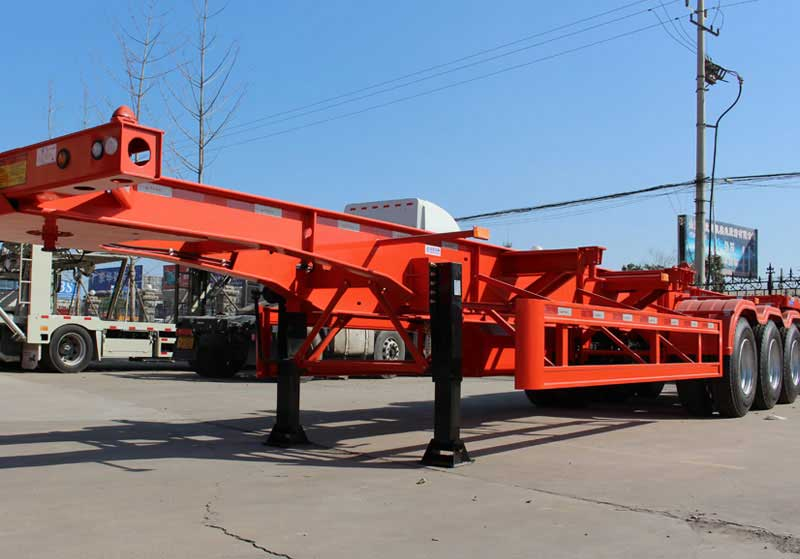

Skeleton semi trailer, also known as shipping container chassis, is one of Vechile Master's most manufactured types of trailers. They are also very widely used all over the world. Our 20ft, 40ft, 45ft, or 53ft skeleton trailers provide high durability with great value. Below is a glimpse of Vehicle Master's skeleton semi trailers displayed outside our factory units.
- Finite Element Analysis is used to improve performance.
- Whole trailer body Electrophoresis Painting provides resistance for over 10 years.
- Highly Strengthened steel and titanium with content of 0.98‰ ensures beam and frame’s high durability.
- The 42 tough rib design ensures safety and carrying capacity.
- Specially designed anti-tire abrasion suspension system prevents tire offset after loading.
- National level welding supervision - process takes more 30 minutes than normal welding time.
Suspension
- Mechanical/Air suspension
- American/German type suspension
- Light duty suspension. Customizable per requirement.
Beam
- 20/40/45ft container
- Customizable per requirement
Beam Style Options
- Straight neck
- Gooseneck
Axle
- Brand options: Vehicle Master/BPW/FUWA
- American/German type axle
- Customizable per requirement
Landing Device
- Brand options: Vehicle Master/JOST
- Customizable per requirement
Tire
- Optional brands per requirement
Detailed Specification of Skeleton Container Trailer
Length | 20 Ft | 40 Ft | 45 Ft |
Axles | 2 Axles/3 Axles | 3 Axles/4 Axles | 3 Axles/4 Axles |
Capacity | 20-50 Tons | 30-80 Tons | 30-80 Tons |
Beam Style | Goose/Tandem | Goose/Tandem | Goose/Tandem |
Paint | Electrophoresis | Electrophoresis | Electrophoresis |
Main Beam | |||
Material | Q345/T700 | Q345/T700 | T700 |
Upper Plate | 12mm | 14mm | 10mm |
Middle Plate | 6mm | 6mm | 5mm |
Lower Plate | 12mm | 16mm | 10mm |
Beam Height | 500mm | 500mm | 420mm |
Trailer Dimension | |||
L 7000mm | L 12400mm | L 13950mm | |
W 2480mm | W 2480mm | W 2500mm | |
H 1560mm | H 1580mm | H 1600mm | |
Axles | |||
Capacity | 2/3 Axles 13T | 3/4Axles 13T | 3/4 Axles 13T |
Brand | FUWA/BPW | FUWA/BPW | FUWA/BPW |
Tire | 12R22.5 | 12R22.5 | 12R22.5 |
(8/12 Pieces) | (8/12 Pieces) | (8/12 Pieces) | |
Rim | 9.00*22.5 | 9.00*22.5 | 9.00*22.5 |
(8/12 Pieces) | (12/16 Pieces) | (12/16 Pieces) | |
Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | |
Leaf Spring | 90mm*13mm | 90mm*13mm | 90mm*13mm |
90mm*16mm | 90mm*16mm | 90mm*16mm | |
10 Pcs | 10 Pcs | 10 Pcs | |
King Pin | 2″/3.5″JOST | 2″/3.5″JOST | 2″/3.5″JOST |
Landing Gear | 28 Tons JOST | 28 Tons JOST | 28 Tons JOST |
Two Speed | Two Speed | Two Speed | |
Twist Lock | 4 Sets | 12 Sets | 12 Sets |
As one of the lightest members in the semi trailer family, skeleton trailer can take one 40 ft container or two 20 ft containers. The key points that show the quality of a skeleton trailer are design, welding, and wiring distribution. Red and yellow are usually the popular colors used on skeleton trailers. Regardless the color, paint needs to be applied evenly and smoothly, and the electrophoresis painting process enable maximum resistance against any corrosion. Machine welding gives the trailer a clean look and more rigid structure.

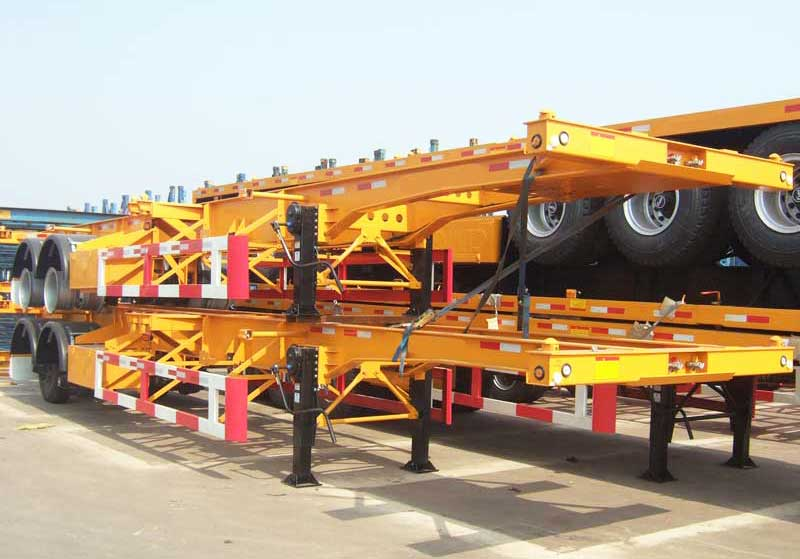

Due to its light weight comparing to the other types of trailers, skeleton trailers can be transported much more easily. You will often see multiple skeleton trailers stacked up on the back of a flatbed trailer or another skeleton trailer.
Skeleton trailers are usually used to carry containers. It’s simple design and rigid structure reduces unnecessary weight for the truck and makes it more gas friendly for users.
